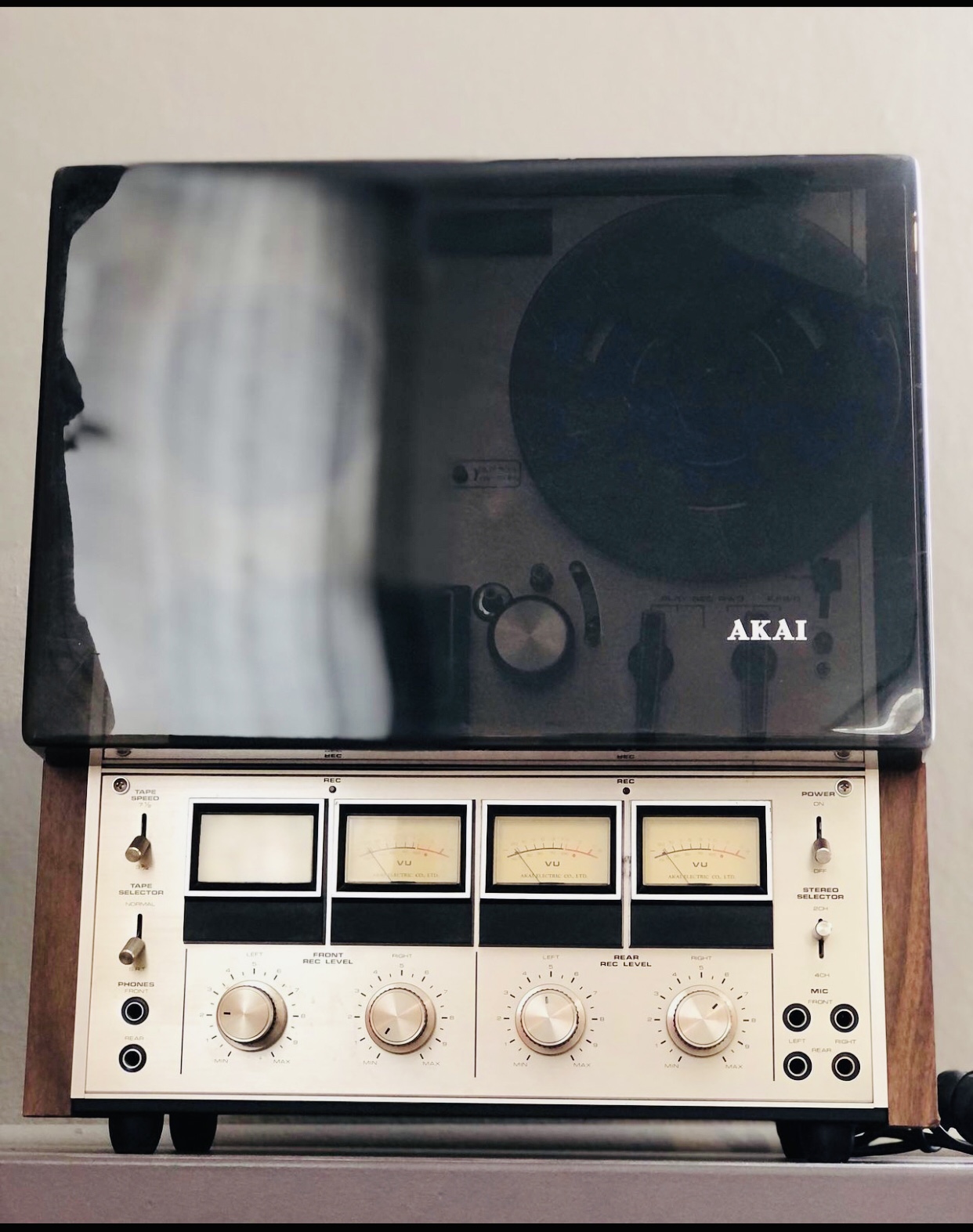

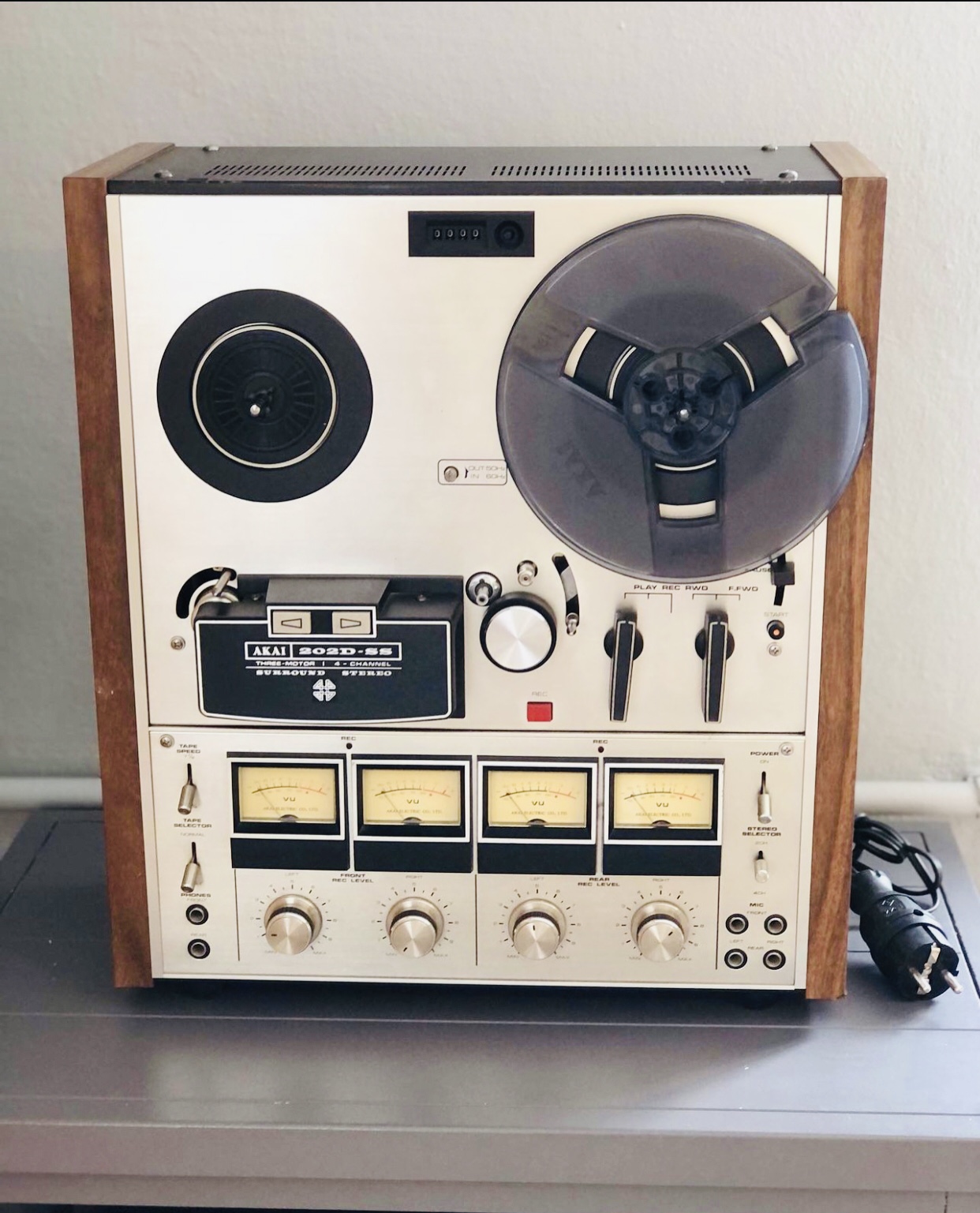

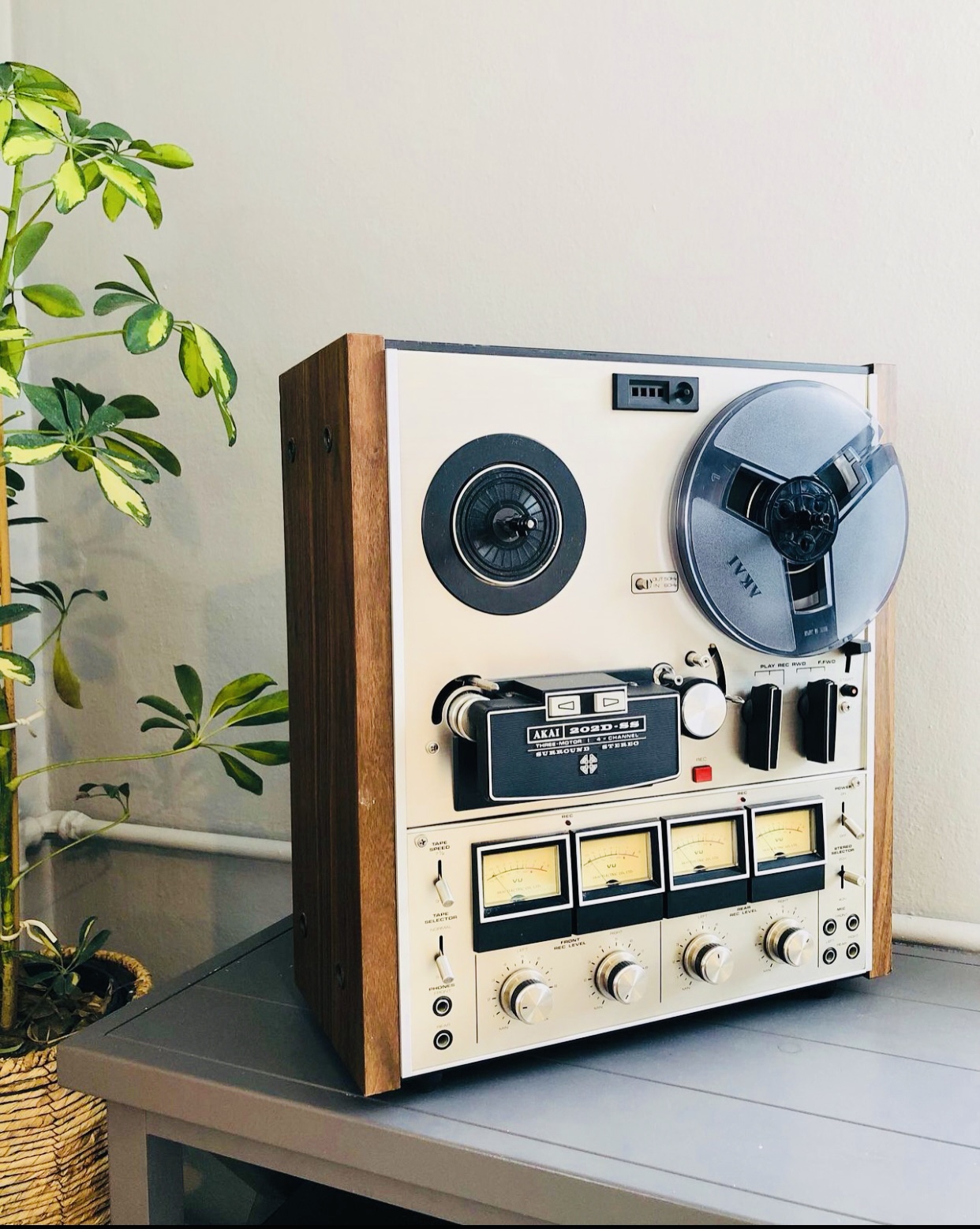

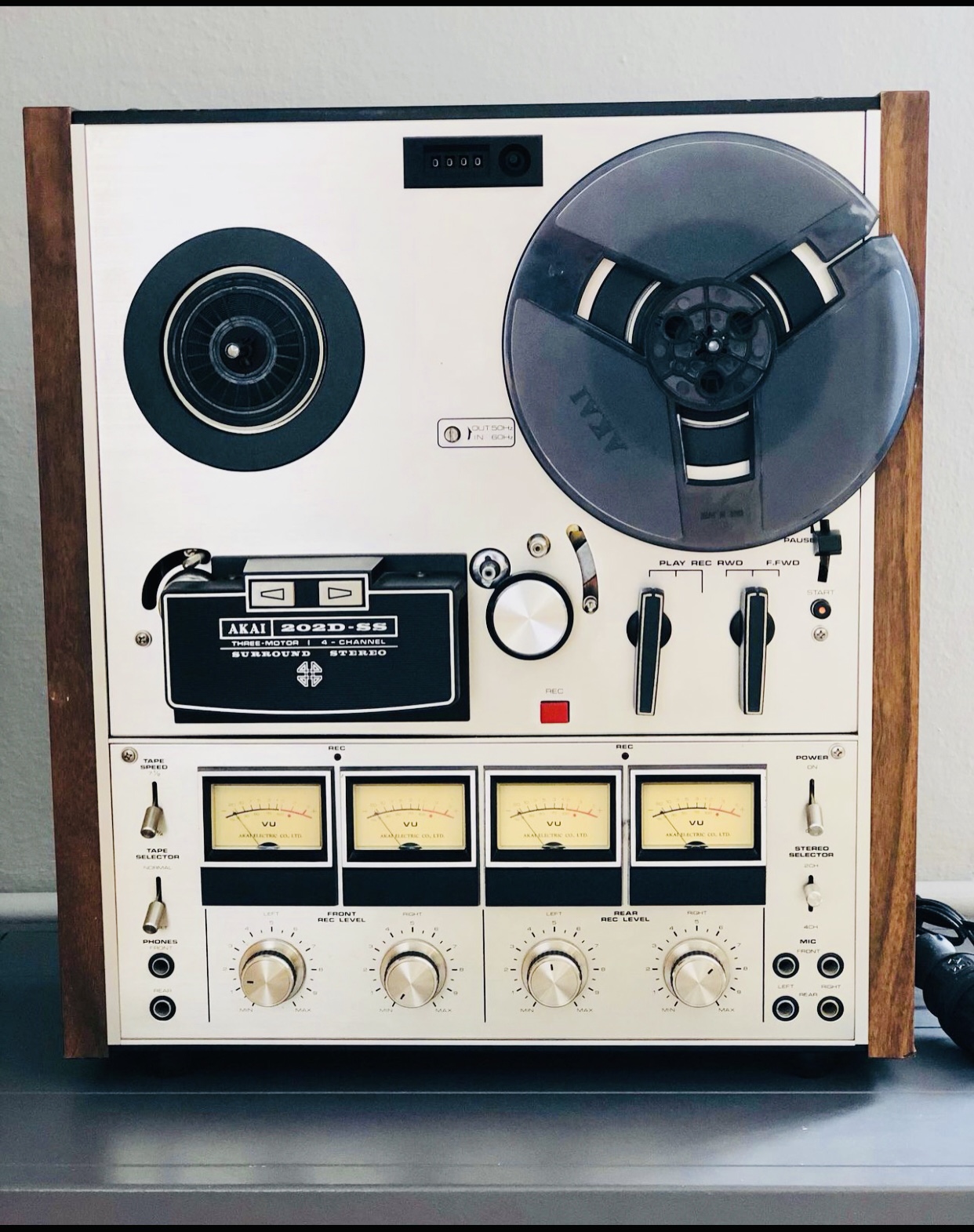

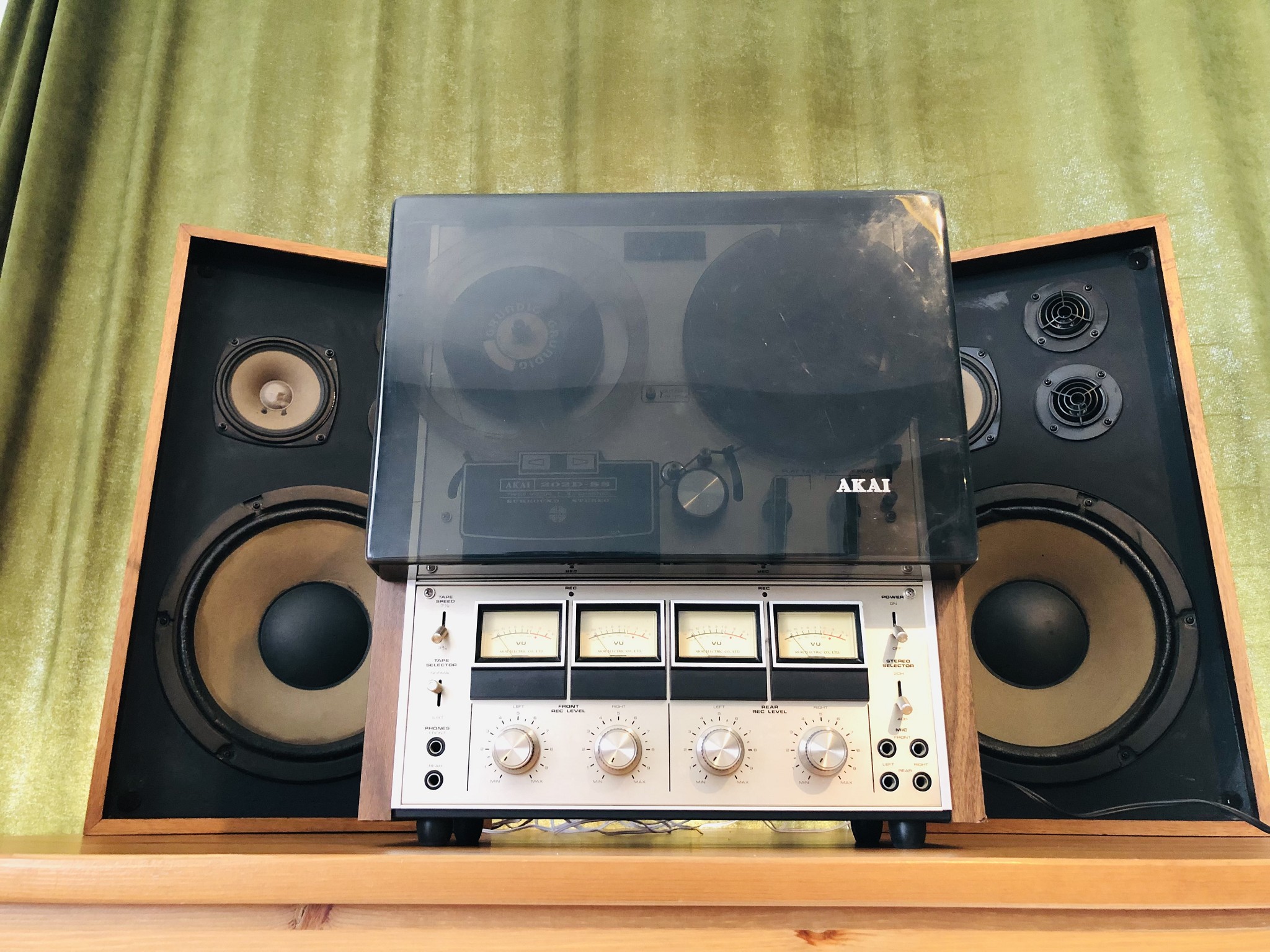

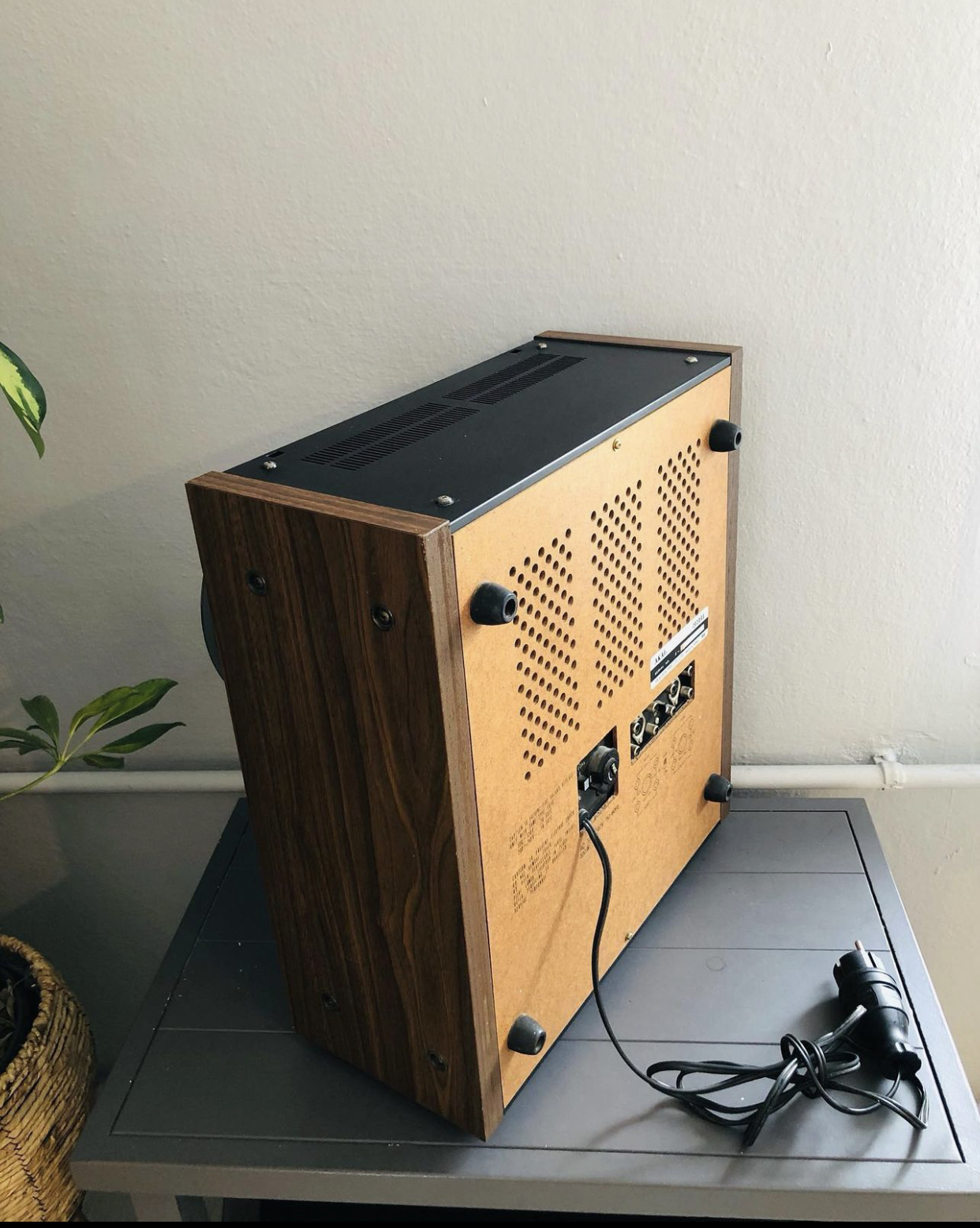

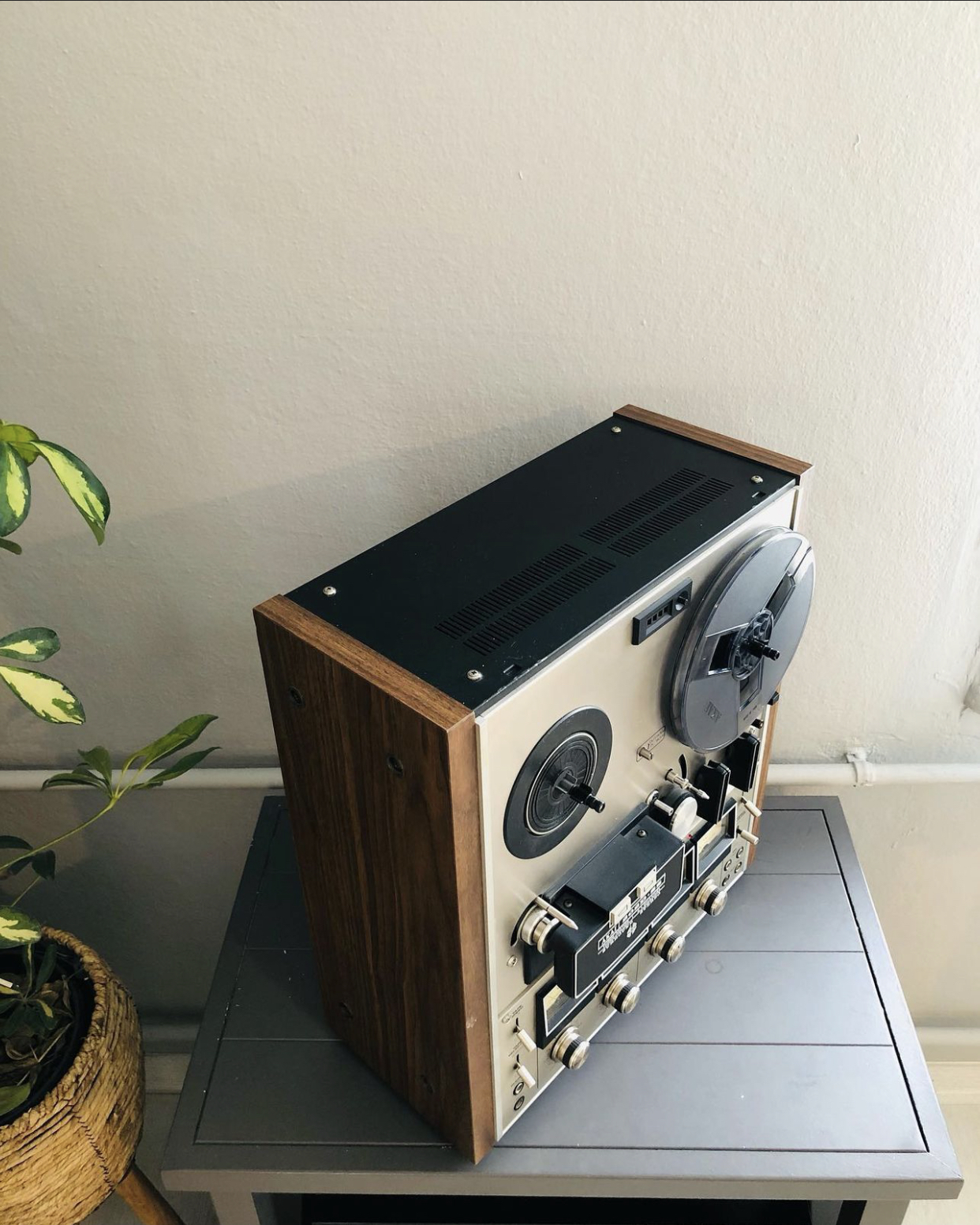

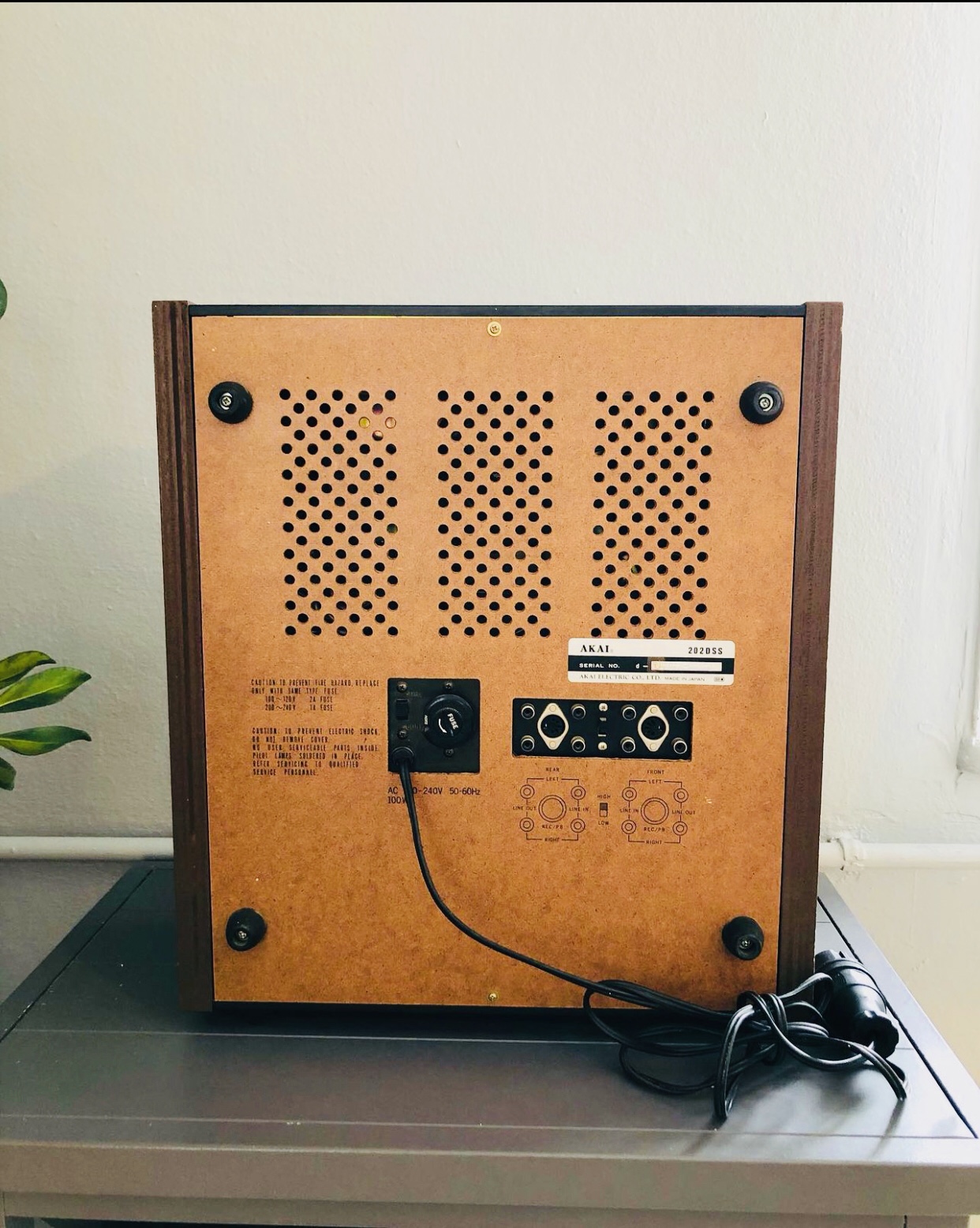

Akai 202D-SS Surround Stereo Tape Deck (1973-76)
Akai Akai 202D-SS Surround Stereo Tape Deck (1973-76)
98 görüntüleme geçen ay, 115 görüntüleme bu ay
İlan Tarihi
17.02.2024Son Güncelleme
27.03.2024
Açıklama
Orjinal Açıklama
Türkçe, diğer lisan metinleri çeviridir ve hata içerebilir.
İngilizceAlmancaİspanyolcaTürkçe
In excellent condition and in good condition.
Specifications
Track system: 4-track, 4-channel, stereo/multi channel system
Heads: 1 x 4 track record/playback, 1 x 4 track erase, 1 x full track erase
Motor: 1 x 2 speed hysteresis synchronous, 2 x 6-pole eddy current outer rotor
Tape speeds: 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.18% (7 1⁄2 ips)
Frequency response: 40Hz to 25kHz (7 1⁄2 ips)
Signal to Noise Ratio: 50dB
Total harmonic distortion: 1.5%
Crosstalk: 43dB
Input: 100mV (line), 5mV (DIN), 0.5mV (mic)
Output: 1.228V (line), 0.6V (DIN)
Semiconductors: 36 x transistors, 22 x diodes, 5 x zener diodes
Dimensions: 391 x 442 x 231mm
Weight: 18kg
In ausgezeichnetem Zustand und in gutem Zustand.
Spezifikationen
Schienensystem: 4-Spur-, 4-Kanal-, Stereo-/Mehrkanalsystem
Köpfe: 1 x 4-Spur-Aufnahme/Wiedergabe, 1 x 4-Spur-Löschung, 1 x vollständige Spur-Löschung
Motor: 1 x 2-Gang-Hysterese-Synchronmotor, 2 x 6-poliger Wirbelstrom-Außenrotor
Bandgeschwindigkeiten: 3 3⁄4 7 1⁄2 ips
Wow und Flattern: 0,18 % (7 1⁄2 ips)
Frequenzgang: 40 Hz bis 25 kHz (7 1⁄2 ips)
Signal-Rausch-Verhältnis: 50 dB
Gesamte harmonische Verzerrung: 1,5 %
Übersprechen: 43 dB
Eingang: 100 mV (Leitung), 5 mV (DIN), 0,5 mV (Mikrofon)
Ausgang: 1,228 V (Leitung), 0,6 V (DIN)
Halbleiter: 36 x Transistoren, 22 x Dioden, 5 x Zenerdioden
Abmessungen: 391 x 442 x 231 mm
Gewicht: 18kg
En excelente estado y en buen estado.
Especificaciones
Sistema de seguimiento: 4 pistas, 4 canales, sistema estéreo/multicanal
Cabezales: 1 x grabación/reproducción de 4 pistas, 1 x borrado de 4 pistas, 1 x borrado completo de pistas
Motor: 1 x 2 velocidades síncrono por histéresis, 2 x rotor exterior de corriente parásita de 6 polos
Velocidades de la cinta: 3 3⁄4 7 1⁄2 ips
Guau y aleteo: 0,18% (7 1⁄2 ips)
Respuesta de frecuencia: 40 Hz a 25 kHz (7 1⁄2 ips)
Relación señal-ruido: 50 dB
Distorsión armónica total: 1,5%
Diafonía: 43dB
Entrada: 100 mV (línea), 5 mV (DIN), 0,5 mV (micrófono)
Salida: 1.228V (línea), 0.6V (DIN)
Semiconductores: 36 x transistores, 22 x diodos, 5 x diodos Zener
Dimensiones: 391 x 442 x 231 mm
Peso: 18kg
Mükemmel durumda ve iyi kondisyonda.
Specifications
Track system: 4-track, 4-channel, stereo/multi channel system
Heads: 1 x 4 track record/playback, 1 x 4 track erase, 1 x full track erase
Motor: 1 x 2 speed hysteresis synchronous, 2 x 6-pole eddy current outer rotor
Tape speeds: 3 3⁄4 7 1⁄2 ips
Wow and flutter: 0.18% (7 1⁄2 ips)
Frequency response: 40Hz to 25kHz (7 1⁄2 ips)
Signal to Noise Ratio: 50dB
Total harmonic distortion: 1.5%
Crosstalk: 43dB
Input: 100mV (line), 5mV (DIN), 0.5mV (mic)
Output: 1.228V (line), 0.6V (DIN)
Semiconductors: 36 x transistors, 22 x diodes, 5 x zener diodes
Dimensions: 391 x 442 x 231mm
Weight: 18kg
