TEAC Launches the Reference 500 Series Pure Analog Headphone Amplifier/Preamp HA-507 Teac, October 30, 2024

TEAC Corporation (TOKYO: 6803) (Headquarter: Tama, Tokyo, President & CEO: Yuji Hanabusa) is proud to announce the Reference 500 Series pure analog headphone amplifier/preamplifier HA-507. Products will be available for shipment in late January 2025.


HA-507-B (Black)

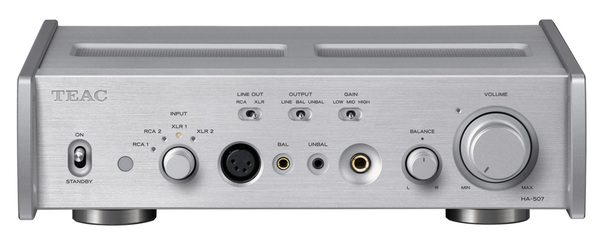

HA-507-S (Silver)

Product Overview

The HA-507 is a pure analog headphone amplifier/preamplifier that incorporates TEAC's premium audio technologies to achieve the highest level of sound quality.
Equipped with an extensive power supply circuit, the HA-507 has exceptional headphone driving power and an extremely wide frequency response that cannot be imagined from its compact appearance. When connected to the TRDD 5 discrete DAC, model UD-507, you can create a special headphone playback system with separate digital and analog sections.
The HA-507 is a no-compromise headphone amplifier that can also be used as a pure analog preamplifier. When paired with a Reference 500 Series power amplifier, you can create a compact yet full-featured separate amplifier system that further enhances the quality of your loudspeaker listening experience.


Key Features

Headphone Amplifier section

  • High power, wide range, low distortion Class AB amplifier
  • Fully balanced/dual mono configuration with extremely powerful/musical amplifier elements
  • Exceptional headphone drive capability of 6,700mW + 6,700mW (32Ω) at balanced output
  • Preamp pass-through function for use as a separate power amplifier for headphones
  • Two balanced outputs: XLR 4-pin × 1, 4.4mm Pentaconn × 1
  • Unbalanced outputs: 6.3mm × 1, 3.5mm × 1
  • Switchable headphone output gain (high/mid/low)


Preamplifier section

  • Premium compact preamplifier built on TEAC's unparalleled excellence in audio design
  • Fully balanced/dual mono configuration
  • “TEAC-QVCS Advanced” with new super high precision, ladder resistor network
  • Smooth, precise volume control in 0.25dB increments
  • Lossless, long life FET input switching system without mechanical contacts
  • “TEAC-HCLD 2 (High Current Line Driver 2)” provides fast and powerful external amplifier drive capability.
  • Inputs: XLR × 2, RCA × 2
  • Outputs: XLR × 1, RCA × 1

Power Supply section

  • Two independent power supplies (one for audio circuits and one for control circuits)
  • Large toroidal power transformers with separate left and right windings exclusive for audio circuits
  • 18,800μF per channel dual-mono configuration for dynamic, responsive sound
  • High-quality power components, high-speed Schottky barrier diodes.
  • Low-feedback, discrete regulated power supply circuit for excellent dynamics and imaging

Mechanical Design, Additional Features

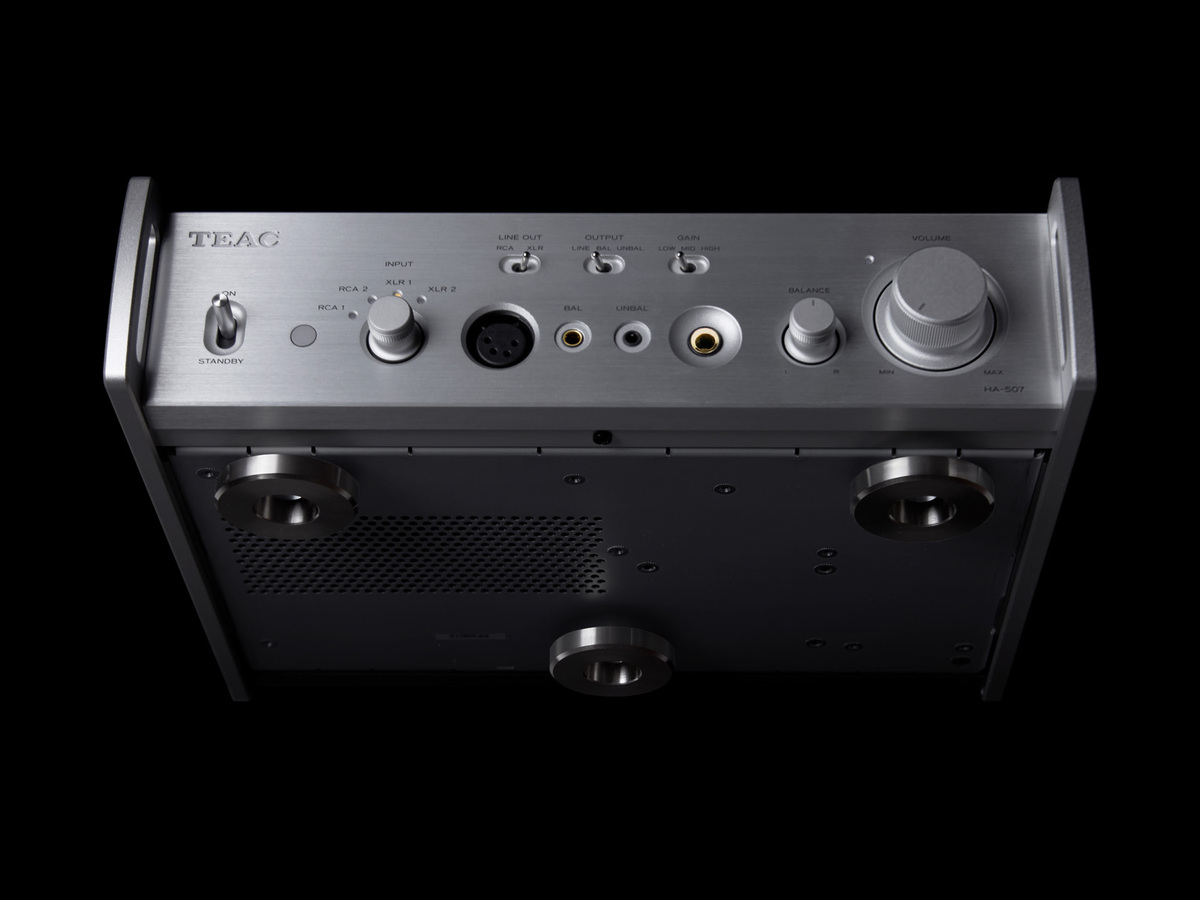

  • Compact yet rugged A4-size aluminum chassis suitable for both audio rack and desktop applications
  • Semi-floating 2.8mm thick aluminum top plate
  • Stressless metal feet with three-point support for precise imaging and natural sound characteristics
  • Fanless, highly efficient heat dissipation design
  • Preamp pass-through for AV surround systems
  • Trigger in/through terminals
  • High grade aluminum knobs with patent-pending mechanism to prevent off-axis shaft movement
  • RC-1340 dedicated remote control (AAA x 2), motorized volume control
  • Available in two colors: silver and black

* Design and specifications subject to change without notice.



Documentos de Comunicado de Prensa

Dirección del Sitio Web

https://teac.jp/
More Press Releases
November 6, 2024
Audio Research
REF6 SE: CAPTURING MORE OF LIVE MUSIC’S NATURAL CUES
As attested to by uniformly positive reviews and customer feedback, the latest REF160 series amps (and now the REF750SEL) manifest speed, time coherence, dynamics and transparency –an overall aliveness– never before experienced in Audio Research tube amplification.
Leer más
November 16, 2023
KEF
KEF introduces two new THX® Certified architectural speakers
Experience high-impact, immersive sound with the latest additions to KEF’s Extreme Home Theatre range the THX® Certified Ci5160RLM-THX and Ci3160RLM-THX.
Leer más
December 14, 2021
MSB Technology

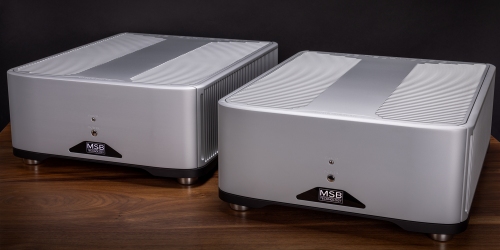

The M205 Mono Amplifier
