Threshold Stasis R 5.0 Vorverstärker
Threshold Stasis R 5.0 Vorverstärker
Posted On
6.06.2023Last Update On
6.06.2023
Description
Original Description is in
German, other language texts are translations and can contain errors.
EnglishDeutschTurkish
Extrem seltener Threshold Stasis R 5.0 Vorverstärker der letzten Generation!

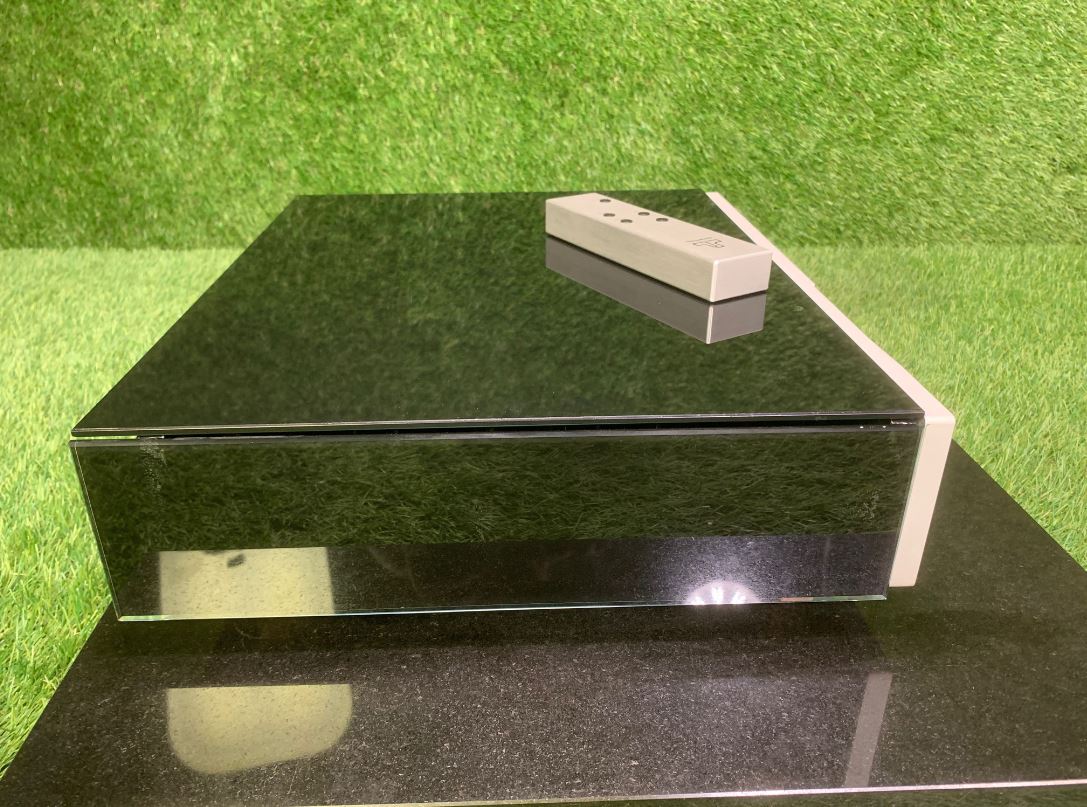

Der Vorbesitzer hat den R-5.0 leider in ein Glasgehäuse verbaut. Dies betrifft nur den Deckel und die Seiten, der Gehäuseboden ist original.

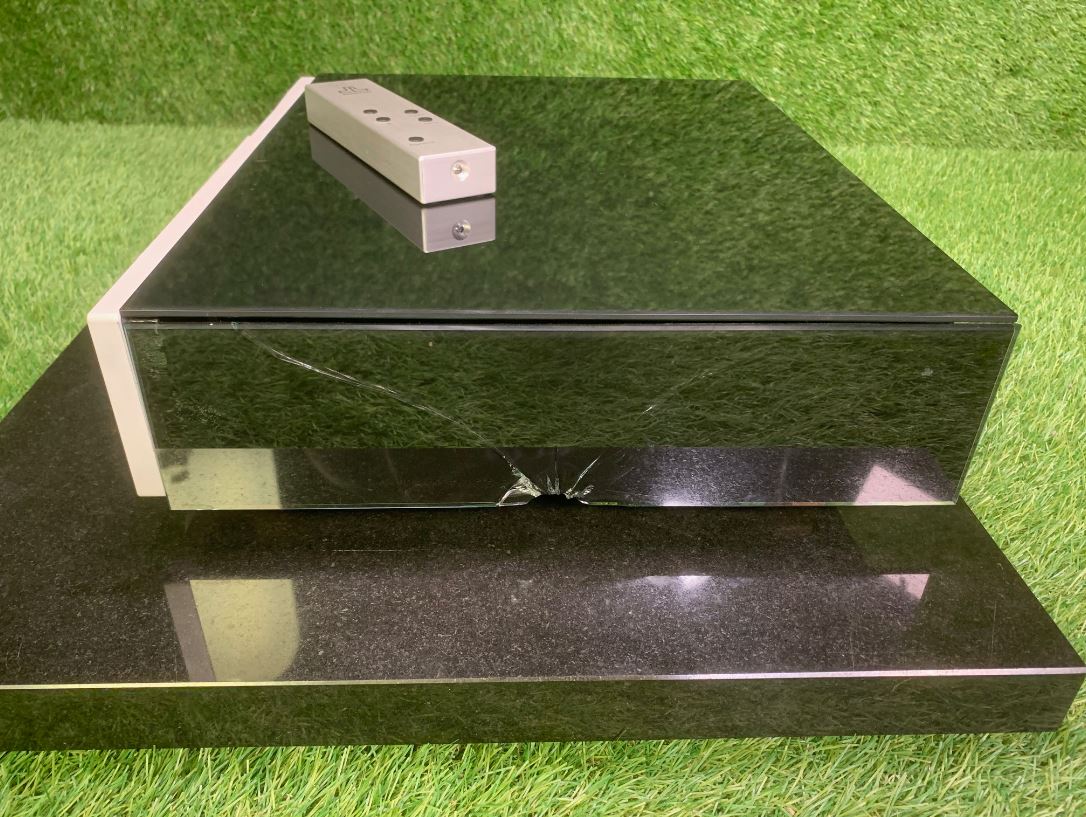

Das Glasgehäuse ist beschädigt!!
Typischer Nelson Pass Sound.

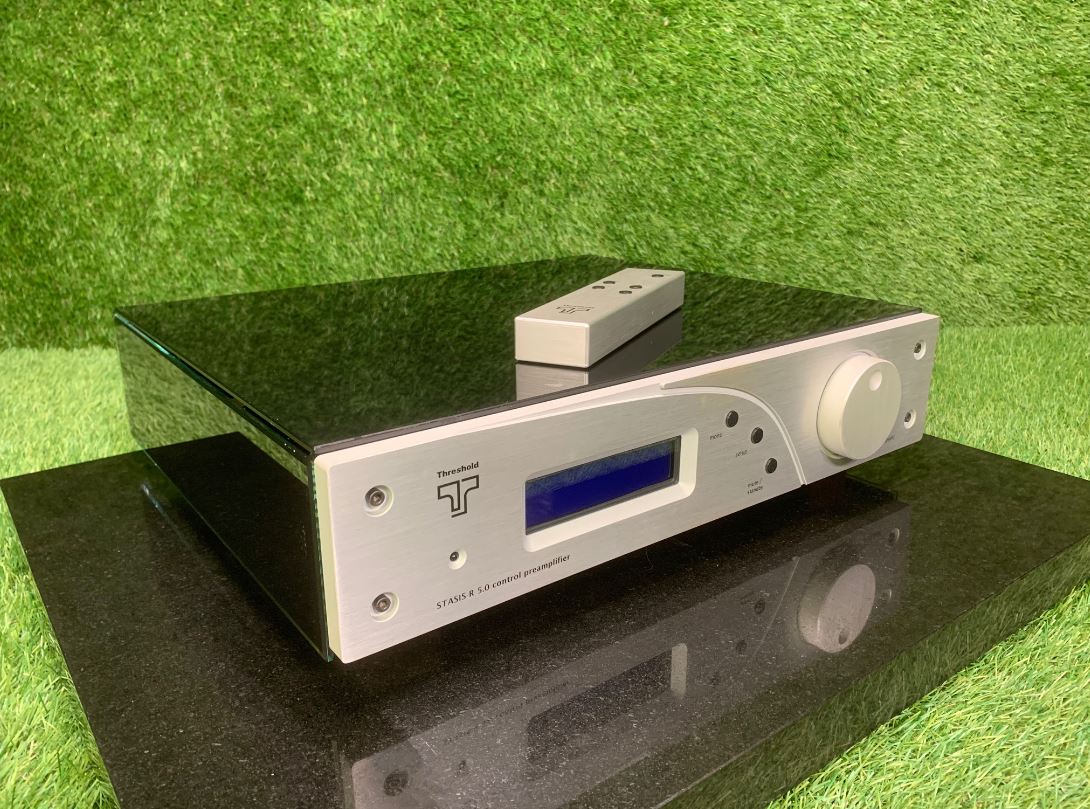

The STASIS-R 5.0 Stereo Control Preamplifier is a classic example of the fine craftsmanship that has been the Threshold hallmark for over 35 years. But it's also Threshold's latest and most eloquent statement-on-the-art of preamplifier design. Striking a delicate balance between art and technology, the 5.0 is a stunning performer both in the lab, where it displays unsurpassed precision, and in the listening room, where it shows off its unparalleled transparency, detail, and depth of image.
The STASIS-R 5.0 is the culmination of Threshold's years of research and development. A truly balanced, fully remote controlled preamplifier, with gain stages based on the highly acclaimed T2, the 5.0 is arguably a benchmark against which other preamplifiers, regardless of price or technology, must now be compared.
Ergonomically, the STASIS-R 5.0 is a pleasure to use. Volume, balance, source selection, mute and programming can be managed with either the front-panel controls or with the hand-held remote. The selected source and the volume level are displayed on an attractive, easy-to-read LCD blue-white screen that switches to display other functions when needed. The rotary digitally-controlled analog volume control allows levels to be adjusted in 0.1 dB increments for precise, repeatable settings.
The 5.0 is an exceptional product in technical terms, designed as a tool to meet the needs of the most demanding audio professional, but it is also, like the well-regarded historic Threshold preamps, one that possesses the magical ability to stir the heart of even the most jaded audiophile.
STASIS-R 5.0 Features
Fully balanced from input to output providing extremely high common-mode rejection and cancellation of most distortion artifacts
Fully complementary circuitry
Low-noise direct-coupled fully discrete solid state design
Short direct signal paths
Rotary volume control, 80 dB range in 0.1 dB increments
Easy-to-read LCD matrix display (blue/white, 2-line, 16 character)

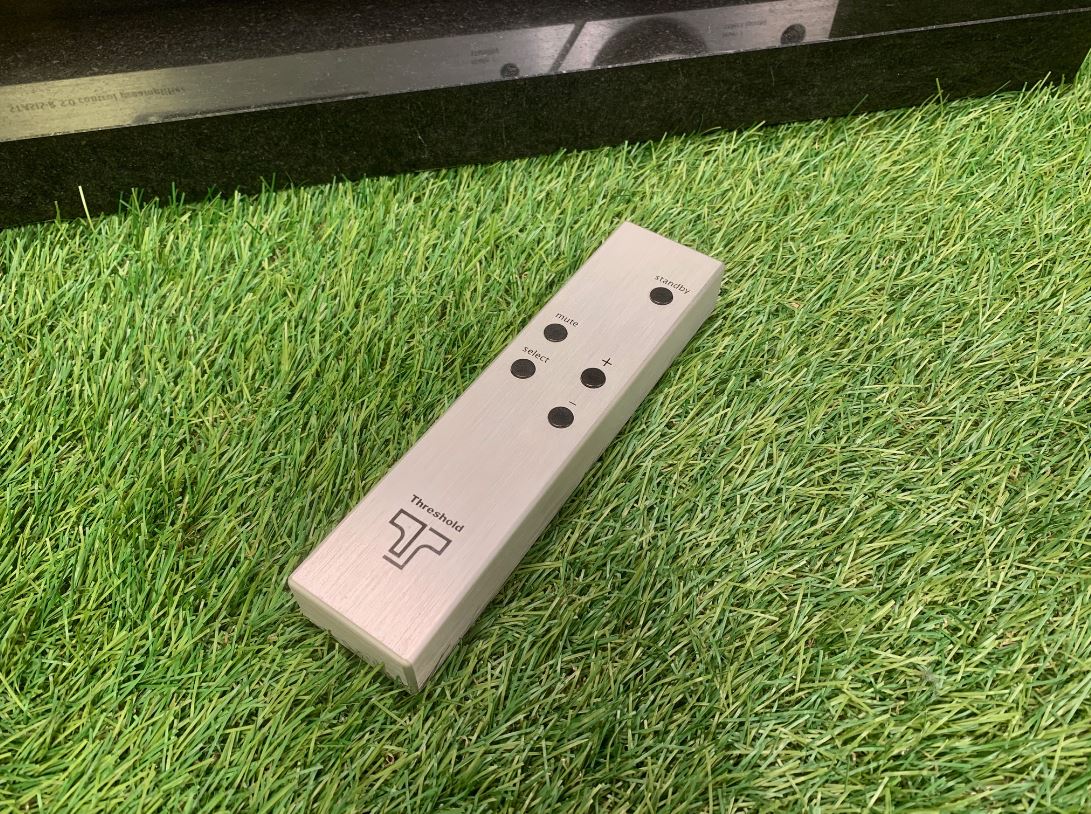

Custom machined aluminum infrared remote control
Separate power supply sections for left and right channels
Separate independent power supply for digital control circuitry
Oversize toroidal power transformer
Trigger output (12v) for on/off control of ancillary equipment (e.g. power amplifier, active subwoofer, etc.)
Output impedance of less than 100 Ohms
RS-232C port for software updates and future features
Two Threshold Data Link (T-LINK) ports for control and communication with other Threshold equipment
Premium components such as military-grade precision resistors, computer-grade capacitors, military-grade glass-epoxy circuit boards
Traditional Threshold rugged chassis construction
High reliability
Unsurpassed precision and sonic excellence

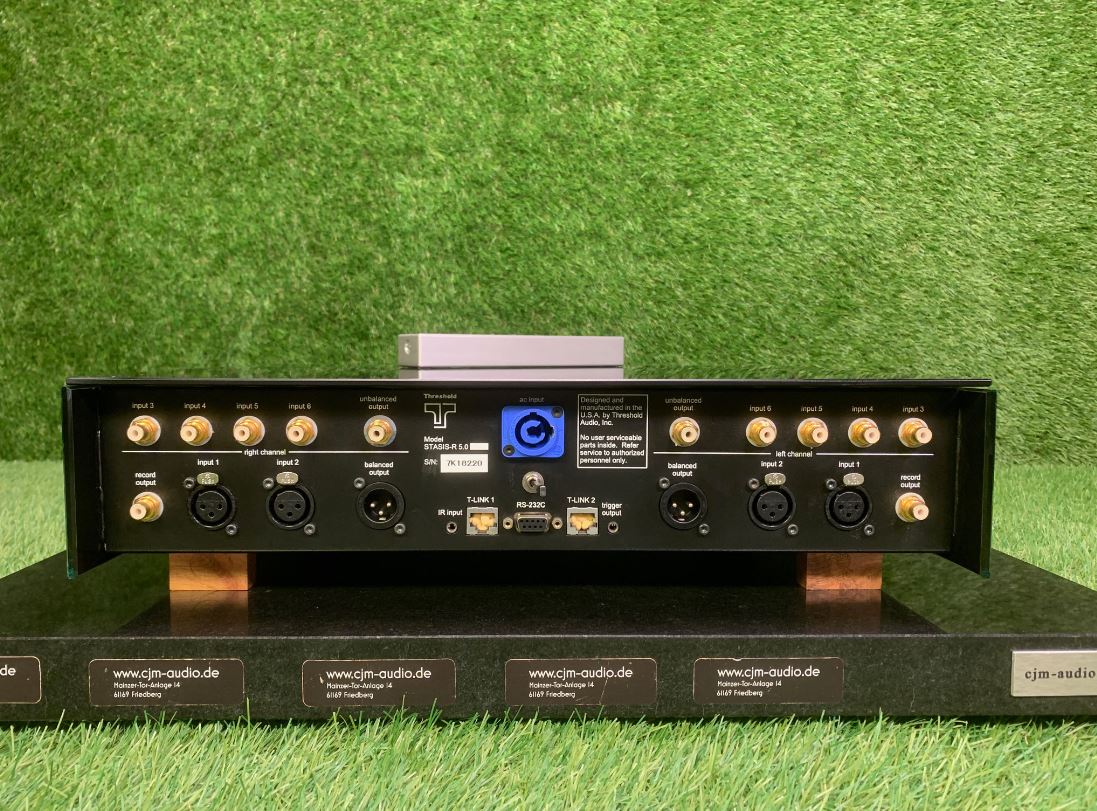

Inputs: 2 balanced (XLR) and 4 unbalanced (RCA) stereo pairs
Line outputs: balanced (XLR) and unbalanced (RCA) stereo pairs
Record outputs: unbalanced (RCA) stereo pair
Rack-mountable design (optional rack-mount accessories required)
Attractive polished silver-anodized aluminum front panel
Handcrafted in the USA
5.0 Specifications
Frequency Response: DC-100kHz; +/- 0.5dB 20Hz-20kHz
Distortion: 0.02% at 1kHz
Gain: 12 dB
Signal-to-Noise Ratio: Greater than 100dB (Ref. 1V input, maximum gain, 20kHz bandwidth)
Input Impedance: 20k Ohm balanced, 10k Ohm unbalanced
Input Sensitivity: 1.12V RMS
Output Impedance: less than 100 Ohms
Output level: maximum 16Vrms balanced, 8Vrms unbalanced
Trigger output: 12V for on/off control of ancilary equipment
Dimensions & Weight
17.1'' W x 13.5'' D x 3.5'' H (3.75'' H including rubber feet)
43.5 cm W x 34.3 cm D x 8.9 cm H (9.6 cm H including rubber feet)
Shipping weight: 20 lbs., 9 kg
Net weight: 14 lbs., 7 kg
Extrem seltener Threshold Stasis R 5.0 Vorverstärker der letzten Generation!
Der Vorbesitzer hat den R-5.0 leider in ein Glasgehäuse verbaut. Dies betrifft nur den Deckel und die Seiten, der Gehäuseboden ist original.
Das Glasgehäuse ist beschädigt!!
Typischer Nelson Pass Sound.
The STASIS-R 5.0 Stereo Control Preamplifier is a classic example of the fine craftsmanship that has been the Threshold hallmark for over 35 years. But it's also Threshold's latest and most eloquent statement-on-the-art of preamplifier design. Striking a delicate balance between art and technology, the 5.0 is a stunning performer both in the lab, where it displays unsurpassed precision, and in the listening room, where it shows off its unparalleled transparency, detail, and depth of image.
The STASIS-R 5.0 is the culmination of Threshold's years of research and development. A truly balanced, fully remote controlled preamplifier, with gain stages based on the highly acclaimed T2, the 5.0 is arguably a benchmark against which other preamplifiers, regardless of price or technology, must now be compared.
Ergonomically, the STASIS-R 5.0 is a pleasure to use. Volume, balance, source selection, mute and programming can be managed with either the front-panel controls or with the hand-held remote. The selected source and the volume level are displayed on an attractive, easy-to-read LCD blue-white screen that switches to display other functions when needed. The rotary digitally-controlled analog volume control allows levels to be adjusted in 0.1 dB increments for precise, repeatable settings.
The 5.0 is an exceptional product in technical terms, designed as a tool to meet the needs of the most demanding audio professional, but it is also, like the well-regarded historic Threshold preamps, one that possesses the magical ability to stir the heart of even the most jaded audiophile.
STASIS-R 5.0 Features
Fully balanced from input to output providing extremely high common-mode rejection and cancellation of most distortion artifacts
Fully complementary circuitry
Low-noise direct-coupled fully discrete solid state design
Short direct signal paths
Rotary volume control, 80 dB range in 0.1 dB increments
Easy-to-read LCD matrix display (blue/white, 2-line, 16 character)
Custom machined aluminum infrared remote control
Separate power supply sections for left and right channels
Separate independent power supply for digital control circuitry
Oversize toroidal power transformer
Trigger output (12v) for on/off control of ancillary equipment (e.g. power amplifier, active subwoofer, etc.)
Output impedance of less than 100 Ohms
RS-232C port for software updates and future features
Two Threshold Data Link (T-LINK) ports for control and communication with other Threshold equipment
Premium components such as military-grade precision resistors, computer-grade capacitors, military-grade glass-epoxy circuit boards
Traditional Threshold rugged chassis construction
High reliability
Unsurpassed precision and sonic excellence
Inputs: 2 balanced (XLR) and 4 unbalanced (RCA) stereo pairs
Line outputs: balanced (XLR) and unbalanced (RCA) stereo pairs
Record outputs: unbalanced (RCA) stereo pair
Rack-mountable design (optional rack-mount accessories required)
Attractive polished silver-anodized aluminum front panel
Handcrafted in the USA
5.0 Specifications
Frequency Response: DC-100kHz; +/- 0.5dB 20Hz-20kHz
Distortion: 0.02% at 1kHz
Gain: 12 dB
Signal-to-Noise Ratio: Greater than 100dB (Ref. 1V input, maximum gain, 20kHz bandwidth)
Input Impedance: 20k Ohm balanced, 10k Ohm unbalanced
Input Sensitivity: 1.12V RMS
Output Impedance: less than 100 Ohms
Output level: maximum 16Vrms balanced, 8Vrms unbalanced
Trigger output: 12V for on/off control of ancilary equipment
Dimensions & Weight
17.1'' W x 13.5'' D x 3.5'' H (3.75'' H including rubber feet)
43.5 cm W x 34.3 cm D x 8.9 cm H (9.6 cm H including rubber feet)
Shipping weight: 20 lbs., 9 kg
Net weight: 14 lbs., 7 kg
Extrem seltener Threshold Stasis R 5.0 Vorverstärker der letzten Generation!
Der Vorbesitzer hat den R-5.0 leider in ein Glasgehäuse verbaut. Dies betrifft nur den Deckel und die Seiten, der Gehäuseboden ist original.
Das Glasgehäuse ist beschädigt!!
Typischer Nelson Pass Sound.
STASIS-R 5.0 Stereo Kontrol Ön Amplifikatörü, 35 yılı aşkın süredir Threshold'in ayırt edici özelliği olan ince işçiliğin klasik bir örneğidir. Ancak aynı zamanda Threshold'in preamplifikatör tasarımının en son ve en anlamlı ifadesidir. Sanat ve teknoloji arasında hassas bir denge kuran 5.0, hem eşsiz hassasiyet sergilediği laboratuvarda hem de benzersiz şeffaflığını, detayını ve görüntü derinliğini sergilediği dinleme odasında çarpıcı bir performans sergiliyor.
STASIS-R 5.0, Threshold'in yıllarca süren araştırma ve geliştirme çalışmalarının doruk noktasıdır. Gerçekten dengeli, tamamen uzaktan kumandalı bir ön amplifikatör olan ve büyük beğeni toplayan T2'ye dayanan kazanç aşamaları ile 5.0, fiyat veya teknolojiden bağımsız olarak diğer ön amplifikatörlerin karşılaştırılması gereken bir kriterdir.
Ergonomik olarak, STASIS-R 5.0'ı kullanmak bir zevktir. Ses seviyesi, denge, kaynak seçimi, sessize alma ve programlama, ön panel kontrolleri veya elde taşınan uzaktan kumanda ile yönetilebilir. Seçilen kaynak ve ses seviyesi, gerektiğinde diğer işlevleri görüntülemek için geçiş yapan çekici, okunması kolay bir LCD mavi-beyaz ekranda görüntülenir. Dijital olarak kontrol edilen döner analog ses kontrolü, hassas, tekrarlanabilir ayarlar için seviyelerin 0,1 dB'lik artışlarla ayarlanmasını sağlar.
5.0, en zorlu ses profesyonellerinin ihtiyaçlarını karşılamak için bir araç olarak tasarlanmış, teknik açıdan olağanüstü bir üründür, ancak aynı zamanda, saygın tarihi Eşik preamfileri gibi, en yorgun odyofillerin bile kalbini karıştırmak için büyülü bir yeteneğe sahip olanıdır.
STASIS-R 5.0 Özellikler
Girişten çıkışa kadar tamamen dengelenmiş, çoğu bozulma eserinin son derece yüksek ortak mod reddi ve iptali sağlar
Tamamen tamamlayıcı devre
Düşük gürültülü doğrudan bağlantılı tamamen ayrık katı hal tasarımı
Kısa doğrudan sinyal yolları
Döner ses kontrolü, 0,1 dB'lik artışlarla 80 dB aralık
Okunması kolay LCD matris ekran (mavi/beyaz, 2 satırlı, 16 karakterli)
Özel işlenmiş alüminyum kızılötesi uzaktan kumanda
Sol ve sağ kanallar
için ayrı güç kaynağı bölümleri Dijital kontrol devresi için ayrı bağımsız güç kaynağı
Büyük boyutlu toroidal güç transformatörü
Yardımcı ekipmanların (ör. güç amplifikatörü, aktif subwoofer, vb.) açma/kapama kontrolü için tetik çıkışı (12v)
100 Ohm'dan az çıkış empedansı
Yazılım güncellemeleri ve gelecekteki özellikler için RS-232C
bağlantı noktası Diğer Eşik ekipmanlarıyla kontrol ve iletişim için iki Eşik Veri Bağlantısı (T-LINK) bağlantı noktası
Askeri sınıf hassas dirençler, bilgisayar sınıfı kapasitörler, askeri sınıf cam-epoksi devre kartları gibi birinci sınıf bileşenler
Geleneksel Eşik sağlam şasi yapısı
Yüksek güvenilirlik
Eşsiz hassasiyet ve sonik mükemmellik
Girişler: 2
dengeli (XLR) ve 4 dengesiz (RCA) stereo çifti Hat çıkışları: dengeli (XLR) ve dengesiz (RCA) stereo çiftleri Kayıt çıkışları: dengesiz (RCA)stereo çifti
Rafa monte edilebilir tasarım (isteğe bağlı rafa monte aksesuarlar gerekir)
Çekici cilalı gümüş eloksallı alüminyum ön panel
ABD'de el yapımı
5.0 Teknik Özellikleri
Frekans Yanıtı: DC-100kHz; +/- 0,5dB 20Hz-20kHz Distorsiyon: 1kHz'de %0,02Kazanç: 12 dB
Sinyal-Gürültü Oranı: 100dB'den büyük (Referans 1V giriş, maksimum kazanç, 20kHz bant genişliği)
Giriş Empedansı: 20k Ohm dengeli, 10k Ohm dengesiz
Giriş Hassasiyeti: 1.12V RMS Çıkış
Empedansı: 100 Ohm'dan az
Çıkış seviyesi: maksimum 16Vrms dengeli, 8Vrms dengesiz
Tetik çıkışı: Yardımcı ekipmanın açma/kapama kontrolü için 12V
Boyutlar ve Ağırlık
17.1'' G x 13.5'' D x 3.5'' H (3.75 inç Y, kauçuk ayaklar dahil)
43,5 cm G x 34,3 cm D x 8,9 cm Y (kauçuk ayaklar dahil 9,6 cm Y)
Nakliye ağırlığı: 20 lbs ., 9 kg
Net ağırlık: 14 lbs., 7 kg
