Marantz Model 2440 4-Kanal SQA-1
Marantz Model 2440
39 views this month
Posted On
12.03.2025Last Update On
12.03.2025
Description
Original Description is in
German, other language texts are translations and can contain errors.
EnglishDeutschSpanishTurkish

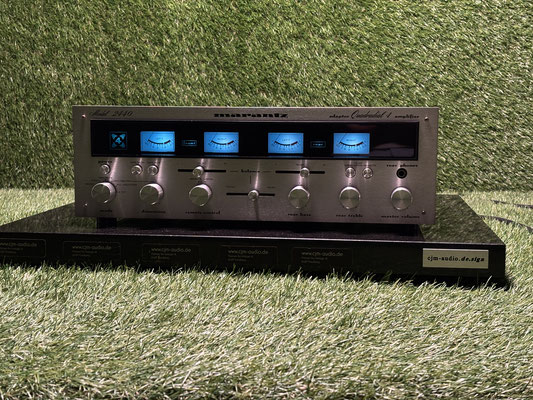

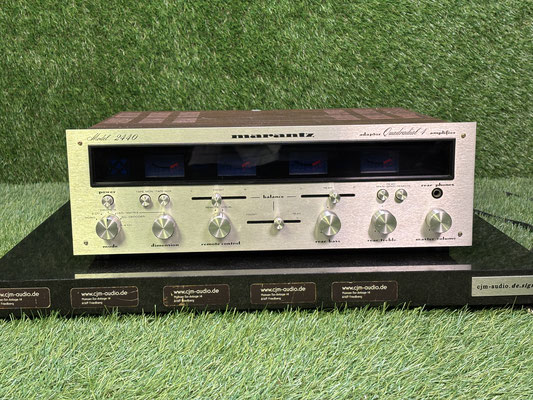

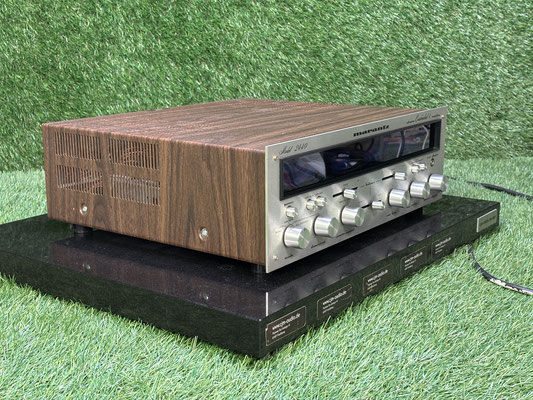

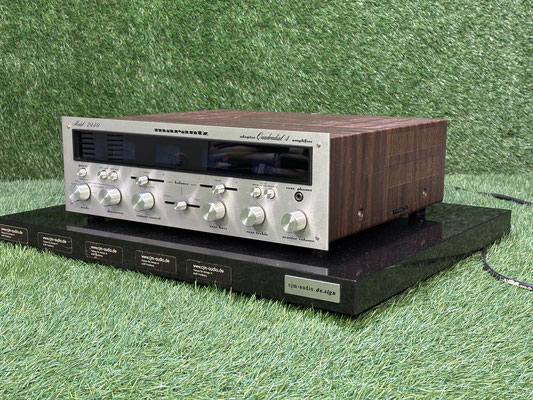

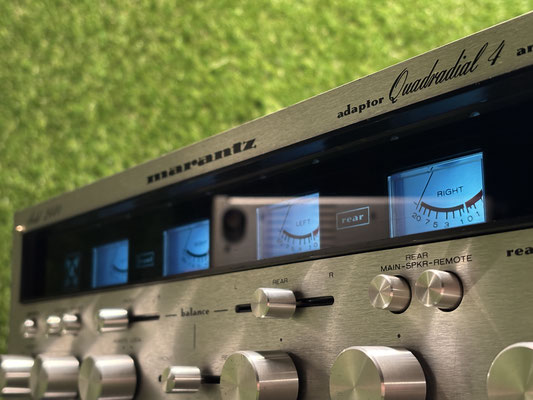

The Marantz Model 2440 is a Quadradial 4 Adaptor Amplifier that was developed in the 1970s to expand conventional stereo systems into full-fledged 4-channel systems. By integrating Marantz's exclusive Vari-Matrix circuitry, the device enables the simulation of 4-channel sound from normal 2-channel stereo sources and the playback of 4-channel sound from any matrix-coded source. In addition, the 2440 can play discrete 4-channel programs as well as regular stereo and mono programs.
HIFIENGINE.COM
Technical specifications of the Marantz Model 2440:
Output power: 20 W per channel into 8 Ω
Frequency response: 5 Hz to 45 kHz
THD: 0.3 %
Damping factor: 45
Input sensitivity: 150 mV (Line)
Signal-to-noise ratio: 80 dB (Line)
Channel separation: 30 dB (Line)
Dimensions (W x H x D): 44 x 13.5 x 36.5 cm
Weight: approx. 11 kg
The 2440 has a slot for an optional decoder, such as the Marantz SQA-1, which is designed for specific matrix systems such as the Columbia SQ. The SQA-1 is a 4-channel audio decoder that can be integrated into compatible Marantz models to enable decoding of SQ-encoded sources.
It is important to note that the SQA-1 is not included as standard in the 2440 and must be purchased separately.
The Marantz Model 2440 thus offers a flexible solution for music lovers who want to add 4-channel functionality to their stereo system, especially in combination with the matching decoder module such as the SQA-1.
Der Marantz Model 2440 ist ein Quadradial 4 Adaptor Amplifier, der in den 1970er Jahren entwickelt wurde, um herkömmliche Stereoanlagen in vollwertige 4-Kanal-Systeme zu erweitern. Durch die Integration des exklusiven Vari-Matrix-Schaltkreises von Marantz ermöglicht das Gerät die Simulation von 4-Kanal-Sound aus normalen 2-Kanal-Stereoquellen und die Wiedergabe von 4-Kanal-Sound aus beliebigen matrixkodierten Quellen. Zudem kann der 2440 sowohl diskrete 4-Kanal-Programme als auch reguläre Stereo- und Mono-Programme wiedergeben.
HIFIENGINE.COM
Technische Daten des Marantz Model 2440:
Ausgangsleistung: 20 W pro Kanal an 8 Ω
Frequenzgang: 5 Hz bis 45 kHz
Klirrfaktor: 0,3 %
Dämpfungsfaktor: 45
Eingangsempfindlichkeit: 150 mV (Line)
Signal-Rausch-Verhältnis: 80 dB (Line)
Kanaltrennung: 30 dB (Line)
Abmessungen (B x H x T): 44 x 13,5 x 36,5 cm
Gewicht: ca. 11 kg
Der 2440 verfügt über einen Steckplatz für einen optionalen Decoder, wie beispielsweise den Marantz SQA-1, der für spezifische Matrixsysteme wie das Columbia SQ entwickelt wurde. Der SQA-1 ist ein 4-Kanal-Audio-Decoder, der in kompatible Marantz-Modelle integriert werden kann, um die Dekodierung von SQ-kodierten Quellen zu ermöglichen.
Es ist wichtig zu beachten, dass der SQA-1 nicht standardmäßig im 2440 enthalten ist und separat erworben werden muss.
Der Marantz Model 2440 bietet somit eine flexible Lösung für Musikliebhaber, die ihre Stereoanlage um 4-Kanal-Funktionalität erweitern möchten, insbesondere in Kombination mit dem passenden Decoder-Modul wie dem SQA-1.
El modelo 2440 de Marantz es un amplificador adaptador cuadrradial de 4 que se desarrolló en la década de 1970 para expandir los sistemas estéreo convencionales a sistemas completos de 4 canales. Al integrar los exclusivos circuitos Vari-Matrix de Marantz, el dispositivo permite la simulación de sonido de 4 canales a partir de fuentes estéreo normales de 2 canales y la reproducción de sonido de 4 canales a partir de cualquier fuente codificada en matriz. Además, el 2440 puede reproducir programas discretos de 4 canales, así como programas estéreo y mono normales.
HIFIENGINE.COM
Especificaciones técnicas del Marantz Modelo 2440:
Potencia de salida: 20 W por canal en 8 Ω
Respuesta de frecuencia: 5 Hz a 45 kHz
THD: 0,3 %
Factor de amortiguación: 45
Sensibilidad de entrada: 150 mV (Line)
Relación señal-ruido: 80 dB (Line)
Separación de canales: 30 dB (Line)
Dimensiones (ancho x alto x profundidad): 44 x 13,5 x 36,5 cm
Peso: aprox. 11 kg
El 2440 tiene una ranura para un decodificador opcional, como el Marantz SQA-1, que está diseñado para sistemas matriciales específicos como el Columbia SQ. El SQA-1 es un decodificador de audio de 4 canales que puede integrarse en los modelos compatibles de Marantz para permitir la decodificación de fuentes codificadas en SQ.
Es importante tener en cuenta que el SQA-1 no está incluido de serie en el 2440 y debe comprarse por separado.
El modelo 2440 de Marantz ofrece así una solución flexible para los amantes de la música que desean añadir la funcionalidad de 4 canales a su sistema estéreo, especialmente en combinación con el módulo decodificador correspondiente, como el SQA-1.
Marantz Model 2440, 1970'lerde geleneksel stereo sistemleri tam teşekküllü 4 kanallı sistemlere genişletmek için geliştirilen bir Quadradial 4 Adaptör Amplifikatörüdür. Cihaz, Marantz'ın özel Vari-Matrix devresini entegre ederek, normal 2 kanallı stereo kaynaklardan 4 kanallı sesin simülasyonunu ve herhangi bir matris kodlu kaynaktan 4 kanallı sesin çalınmasını sağlar. Buna ek olarak, 2440 ayrı 4 kanallı programların yanı sıra normal stereo ve mono programları da oynatabilir.
HIFIENGINE.COM
Marantz Model 2440'ın teknik özellikleri:
Çıkış gücü: 8 Ω
>Frekans yanıtı: 5 Hz - 45 kHz
THD: %0,3
Sönümleme faktörü: 45
Giriş hassasiyeti: 150 mV (Hat)
Sinyal-gürültü oranı: 80 dB (Hat)
Kanal ayrımı: 30 dB (Satır)
Boyutlar (G x Y x D): 44 x 13,5 x 36,5 cm
Ağırlık: yaklaşık 11 kg
2440, Columbia SQ gibi belirli matris sistemleri için tasarlanmış Marantz SQA-1 gibi isteğe bağlı bir kod çözücü için bir yuvaya sahiptir. SQA-1, SQ kodlu kaynakların kodunun çözülmesini sağlamak için uyumlu Marantz modellerine entegre edilebilen 4 kanallı bir ses kod çözücüdür.
SQA-1'in 2440'a standart olarak dahil olmadığını ve ayrıca satın alınması gerektiğini unutmamak önemlidir.
Marantz Model 2440, bu nedenle, özellikle SQA-4 gibi eşleşen kod çözücü modülüyle birlikte, stereo sistemlerine 1 kanallı işlevsellik eklemek isteyen müzik severler için esnek bir çözüm sunar.
